Description

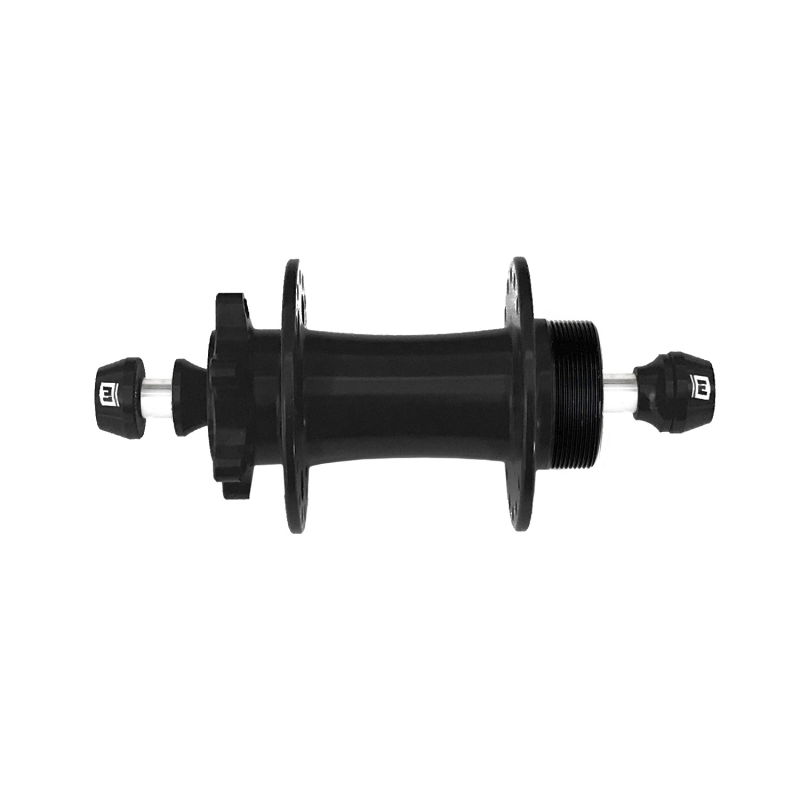

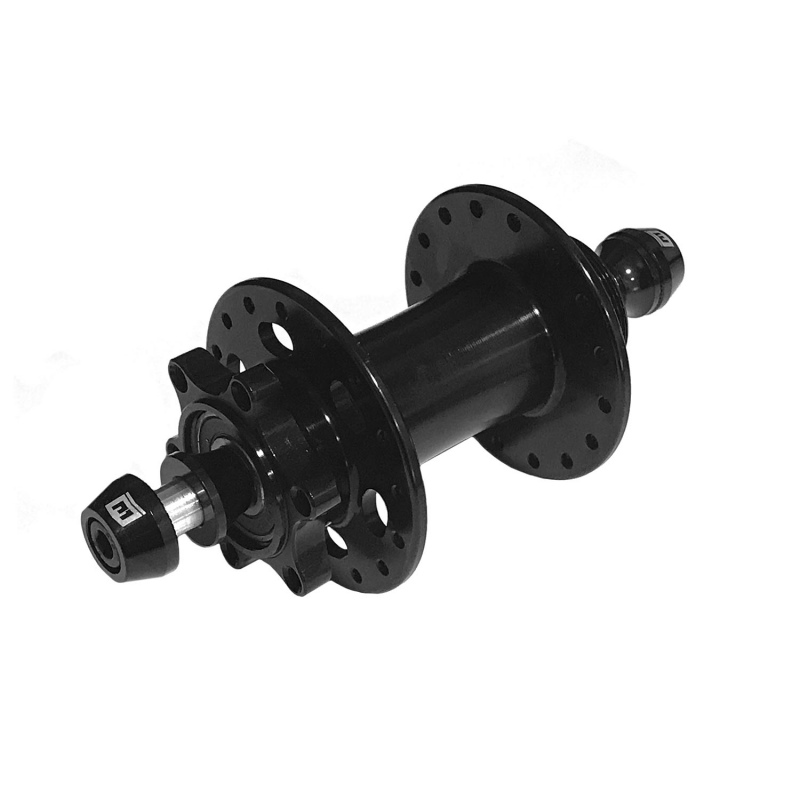

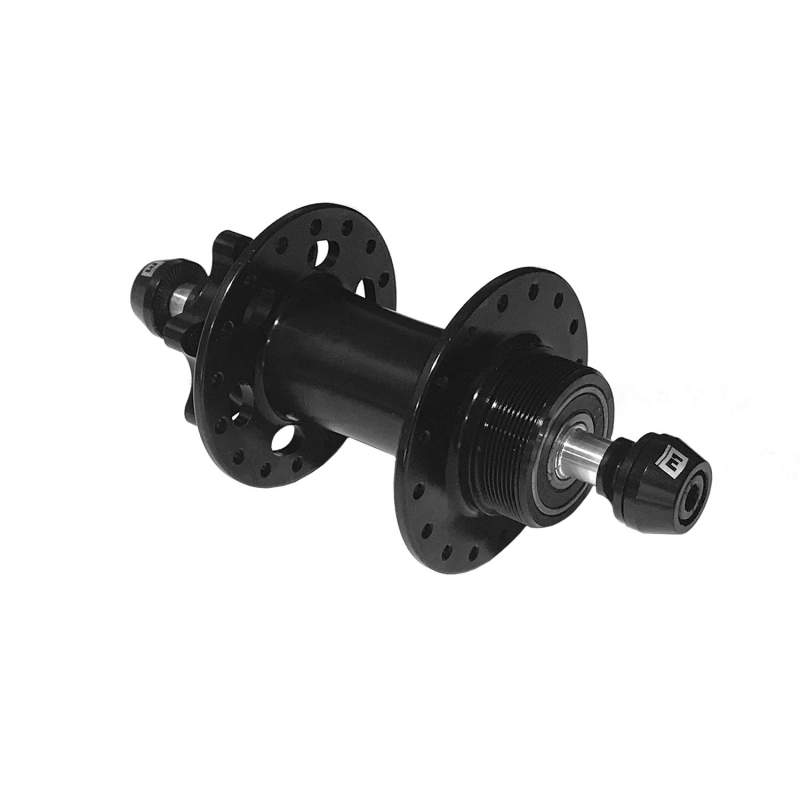

– 116mm rear entry range hub for disc brakes.
– Design with a quality CNC machined aluminum 6061-T6.
– Axle in 7075-T6 aluminum with 12/10mm diameter and internal M6 thread.
– Standard thread 1.37 “x 24t that allows to use freewheel and fixed sprockets.
– Disc support for standard 6-hole IS with M5x0.8 thread.
– Replaceable sealed bearings that offers a smooth and effective operation.
– Includes M6x25mm screws and washers to ensure a perfect fit to the frame.
– 32 holes of 2.5mm to mount spokes type J.
– Includes spacers on each side to fixe size of 116mm.
Material
-Body: AL6061-T6
-Axle: AL7075-T6
Sizes
– Axle: Ø10/12xL128mm
– Internal axle thread: M6x25mm
– Sprocket thread: 1.37 “x 24t
– 32x Ø2.5mm holes
– Walls Ø67mm
Finish
– Anodized in black color.
Weight
– 175g (+20g additional screws and washers)
