Description
Frame and fork

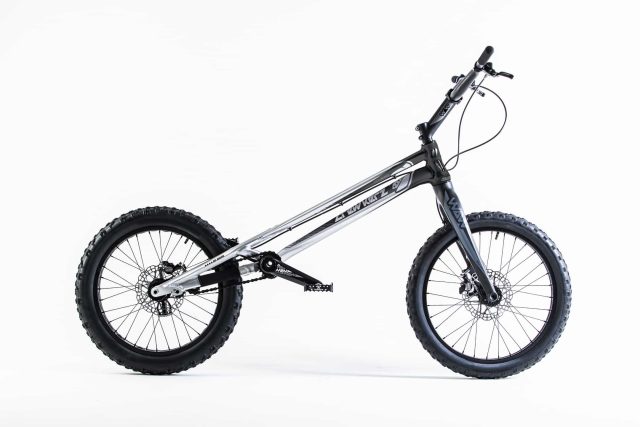

– Frame: Crewkerz Jealousy Ultimate 20” 1 1/8” – 1.5” tapered.
– Forks: WAW Ultimate Carbon 20”, with 1 1/8” – 1.5” tapered.
Wheels
– Front: WAW Hashtagg Edition 20”. Tire – Monty ProRace 20* 2.0.
– Rear: WAW Hashtagg Edition 19”. Tire – Monty ProRace 19” * 2.5.
Brakes
– Front brake: Hope Tech 4 Trial zone, 160mm rotor.
– Rear brake:Hope Tech 4 Trial zone, 160mm rotor.
Drivetrain
– Crankset: Crewkerz WAW 160mm AS30 crankset, black.
– Freewheel: 135.9 with 18 teeth, 9 pawls, Shimano HG splines (TBC).
– Chain: KMC Z1 eHX, black.
– Rear sprocket: Crewkerz 12T, splined.
– Pedals: WAW Single cage.
– Tensioner: Crewkerz.
Steering
– Headset: Crewkerz Internal Tapered 1 1/8” – 1.5”, anodised black
– Stem: Crewkerz WAW Ultimate 155mm x 20º
– Handlebar: Crewkerz Waw Carbon, 102mm or 108mm height, 720mm width
Geometry
– Wheelbase: 1005mm
– Chainstay length: 350mm
– Bottom bracket rise: +85mm
– Head angle: 71.5º
The hydroformed tubes provide a much more dynamic, efficient behavior, they reduce latency (The bike returns to its original zero // position more quickly). Ground clearance is optimized with the new shape of the down tube. On this new generation, the thicknesses of the tubes have been adjusted in order to provide greater reliability and better energy return.
WAW Ultimate carbon handlebars available in 102 mm and 108 mm riseup, the WAW stem, and the Ultimate carbon fork will sport a new, more sober design.
The WAW crankset offers weight gain and increased nervousness thanks to the new manufacturing process for the axle and cranks, as well as the elimination of sharp angles to spare our ankles!
