Description
Frame and fork
– Frame: Clean X1 26” 1 1/8” – 1.5” tapered, post mount disc brake mounts.

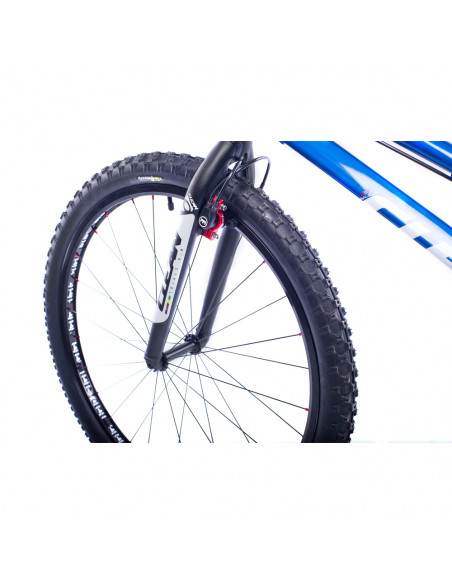

– Forks: Clean X2 26”, with 1 1/8” – 1.5” tapered, 4 bolt rim brake mounts.
Wheels
– Front: X2 Clean hubs, Clean 26” 28h 34mm single wall rim. Tire – Clean Koala 26* 2.0.
– Rear: X2 Clean hubs, Clean 26” 32h 48mm single wall rim.. Tire – Clean Koala 26” * 2.5.
Brakes
– Front brake: Magura HS11 hydraulical rim brake.
– Rear brake: Magura HS11 hydraulical rim brake.
Drivetrain
– Cranks: Clean ISIS 170mm, black.
– Freewheel: Clean 108.9, 18t, screw on.
– Chain: KMC Z1 eHX.
– Rear sprocket: Clean 15T, screw on.
– Pedals: Clean Single cage.
– Tensioner: Clean.
Steering
– Headset: Tapered 1 1/8” – 1.5”.
– Stem: Clean 155mm x 25º, for 31.8mm handlebars.
– Handlebar: Clean aluminium 103mm, 720mm width
Geometry
– Wheelbase: 1083mm
– Chainstay length: 380mm
– Bottom bracket rise: +68mm
– Head angle: 72º
