Apraksts
– Constructed in high modulus carbon fiber, not only to get a really low weight, also to offer a great finishes, stiffness and strenght unbeatable.
– Highly tested in Taiwanese lab, passing the “EN” impact and fatigue testing perfectly after few samples.
– Carbon layers are positioned in the same position, unidirectional (UD), offering a great strenght compared with other 3K forks.

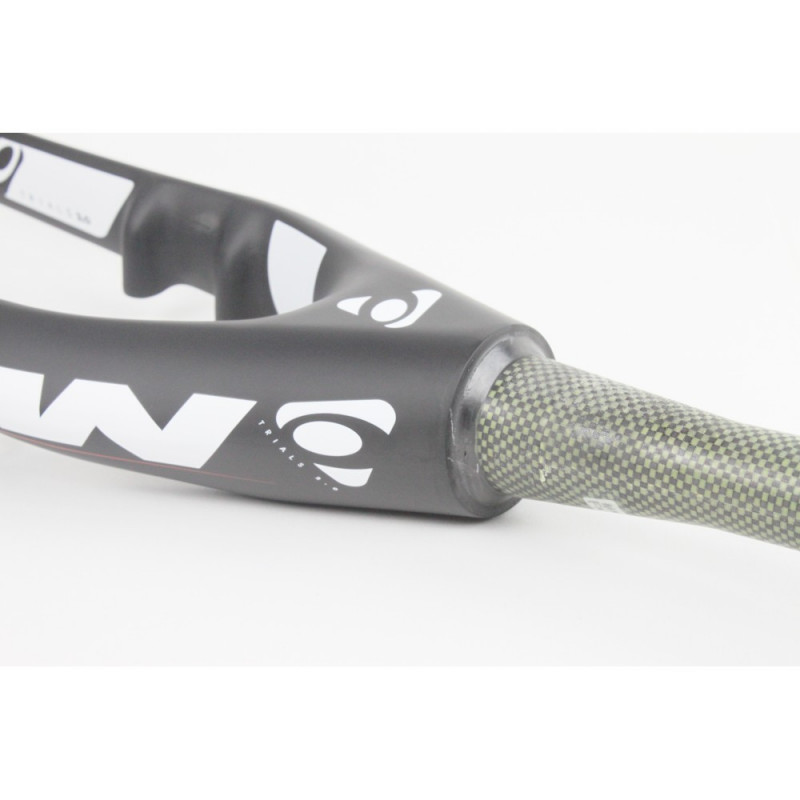

– 180mm long steerer tube, with an aluminium insert to provide better stiffness. Also comes with an M6 threaded area, so no star nut needed.
– Steerer tube comes with two Kevlar layers to offer better stiffness against big impacts.
– Integrated 45º Crown race, the bearing sits directly in the fork without the need of a Crown race.
– Tapered fork offers so much stiffness and strenght than standard 1 1/8” forks. Suitable only with tapered frames with 1 1/8” in the top and 1/5” in the bottom.
– With 4 bolt rim brake mounts (spaced at 92mm) and PostMount disc brake mounts.

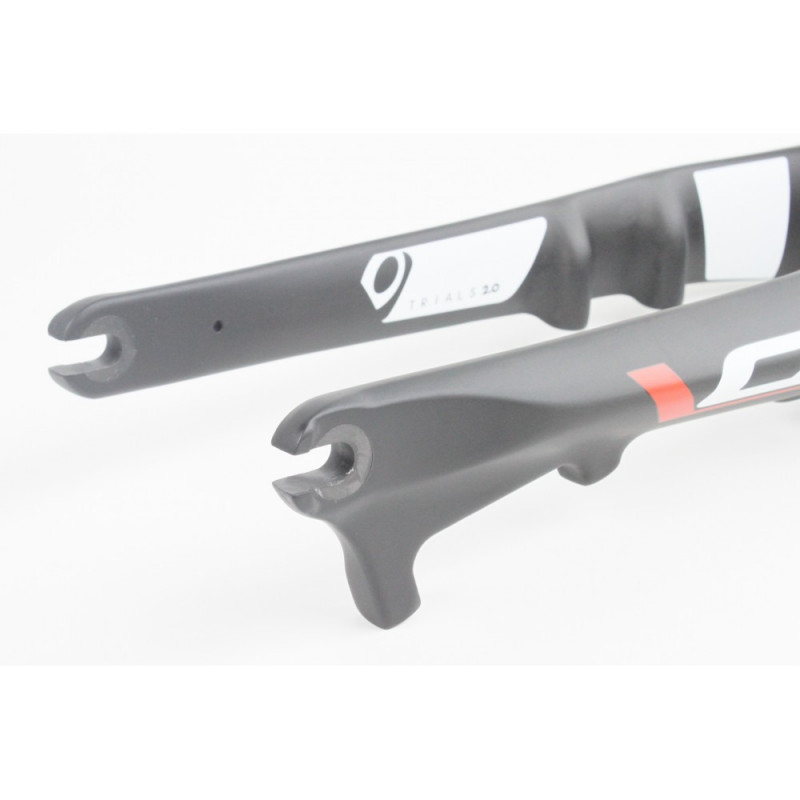

– 8mm thick open dropouts, without aluminium plates, spaced at 100mm to fit hubs with 10mm diameter axle.
Weight: 503g (with 180mm steerer and without need star nut).
Fork geometry
Axle to Crown lenght – 370mm
Axle offset – 40mm
Steerer tube length – 180mm
